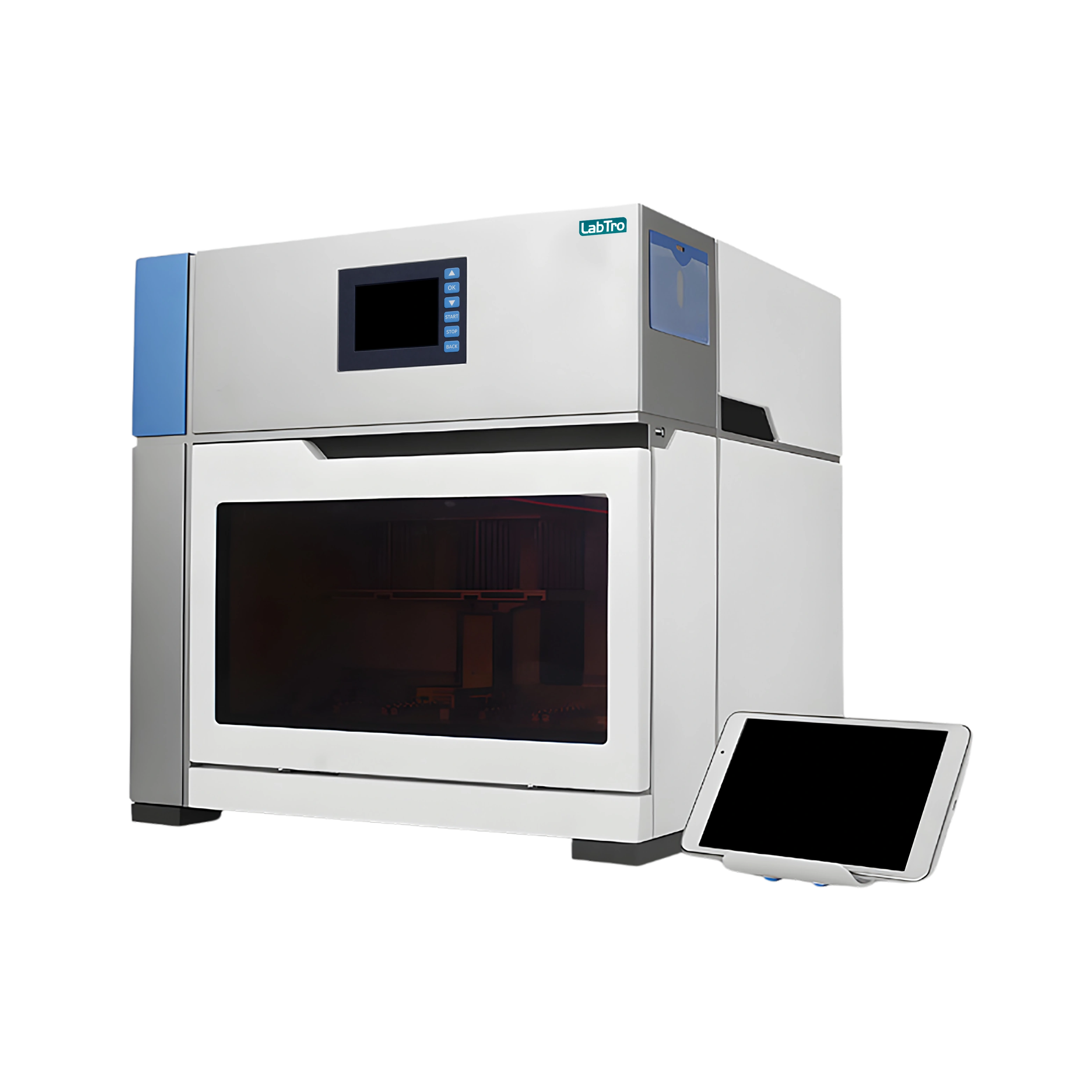

Nucleic Acid Extractor System LT-NAE302

Nucleic Acid Extractor System LT-NAE302

Nucleic Acid Extractor System LT-NAE302 employ the proven magnetic-particle technology to extract highly purified nucleic acid. This instrument is ensured with three throughputs modules for greater flexibility in sample throughput and processing volume. It can be easily operated with 3.5 in touch screen combined with an unmatched remote-control pad. Maximum temperature range of 10° to 40°C is allowed while processing 32 samples with a capacity of 1000 μL in a single run with efficient use of bench space. It can be connected to computer through USB communication interface. It can store up-to 15 sets of programme.

Catalog

Specifications

Sample Throughput 1 to 32
Processing Volume 30 to 1000 μL
Magnetic Bead Residue <1%
Applicable Consumables 96-deep-well plates, 6-tube strips
Heating Temperature Pyrolysis heating: room temperature to 120°C
Elution heating: room temperature to 120°C
Operating Noise <65 dB
Oscillation Mixing Adjustable: multi-mode, multi-level mixing
Reagent Type Magnetic beads-based extraction kits
Operation Mode A. Remote control via smart phone /tablet (Android system)
B. Screen/button operation
Experimental Storage Up to 15 sets of programs can be stored in the instrument
Android applications can store > 500 programs
Program Management Programs can be created, edited, applied and deleted with high flexibility.
Pollution Control Built-in UV disinfection module
Power Failure Protection In the event of an unexpected power failure, there are options available whether or not to continue the experiment
Network Communication Mobile/tablet wifi remote control;
Ethernet remote control applicable
Size(W×D×H) 440×435×445 mm
Weight 31.5 Kg

Features

  • Built in UV disinfection module
  • Ultra-silent operation
  • Different package size of pre-filled extraction kits is available for greater flexibility in sample throughput
  • No external computer is needed
  • Simply remarkable software
  • High throughput
  • Easy, flexible and reliable new generation technology for rapid extraction
  • Unique special reagent provides rapid nucleic acid extraction and highly purified nucleic acid extractor
Application

It is widely applied in the field of disease prevention and control, clinical applications, food and drug administration, forensic medicine and scientific researches
